Strip Lighting & Backlighting
Flexible, concealed light for millwork, coves, architectural details and luminous surfaces.
LED strip lighting is a flexible, low-profile source that can be concealed inside millwork, coves, reveals and custom architectural details. Backlighting uses strip or modular sources behind a translucent material so the surface itself appears luminous. Both approaches depend on more than the LEDs alone: channels, lenses, spacing, cavity depth, power supplies and controls determine how polished the finished light will look.
What is LED strip lighting?
LED strip—sometimes called tape light—is a narrow, flexible circuit populated with small light-emitting diodes. It can be cut or ordered in project-specific lengths and paired with compatible power supplies and controls. Different versions offer varying output, diode spacing, color quality and environmental ratings.
Strip lighting is most effective when it is treated as a component within a complete system. A specification-grade installation typically combines the strip with an aluminum channel, lens, connectors, wiring and accessible driver rather than attaching bare tape directly to a finished surface.
Where strip lighting works best

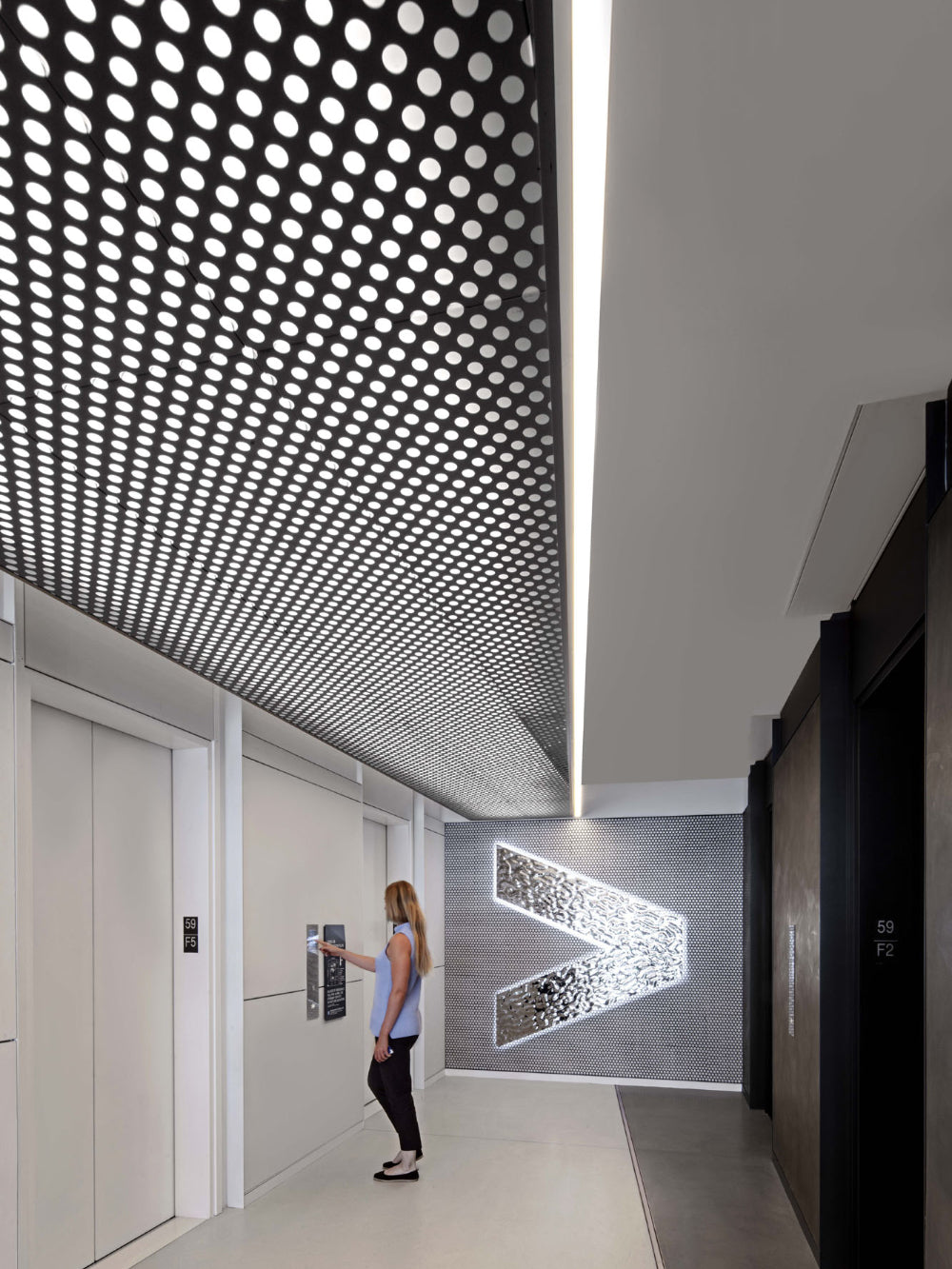

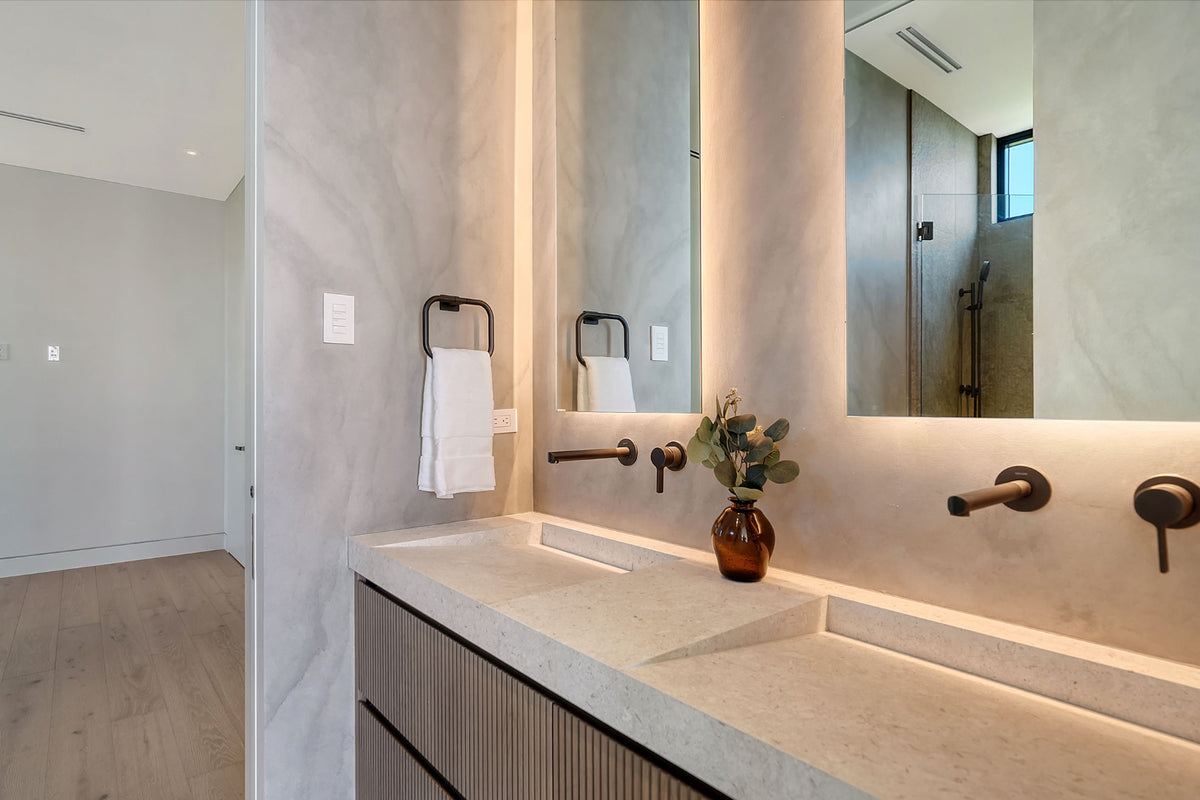

Common applications include under-cabinet and shelf lighting, toe kicks, closets, handrails, stair treads, curtain pockets, coves, ceiling details and recessed reveals. The source can provide direct task light, illuminate a nearby surface indirectly or create a visible continuous line.
Because the strip is compact and adaptable, it can solve details that would be difficult with a conventional fixture. That flexibility does not remove the need for planning: output, viewing angle, ventilation, wire feeds and service access should be coordinated before millwork or drywall is completed.
Why channels and lenses matter
An aluminum channel supports the strip, helps manage heat and provides a consistent mounting surface. Channels are available for recessed, surface-mounted, angled, mud-in and specialty details. A lens protects the source and affects how thoroughly the individual LEDs blend into a continuous line.
Deeper profiles generally provide more distance for the light to mix before it reaches the lens. Shallow profiles fit tight details but may require a denser LED array or more diffusing lens to avoid visible dots. The appropriate channel should be selected together with the strip—not as an afterthought.
Creating dot-free linear light
Visible dots occur when individual LEDs can be distinguished through the lens or reflected on a nearby material. Diode spacing, profile depth, lens diffusion, output and viewing distance all affect the result. Glossy stone, glass and polished counters may reflect the source even when it is hidden from direct view.
A deeper channel, higher-density strip, more diffused lens or increased distance from the illuminated surface can improve visual blending. For highly visible details, test the complete assembly with the actual finish material before fabrication.
Luminii strip lighting systems
Luminii and Optic Arts offer specification-grade LineLED strip platforms in a range of outputs and color capabilities, including static white, warm dim, tunable white, RGBW and pixel-controlled options. Luminii’s Gen 2 strip platform expands output and color-temperature choices while simplifying compatibility across fixtures, extrusions, controls and power supplies.
Luminii extrusions provide recessed, surface, angled and integrated mounting options. Kendo linear families offer factory-built, dot-free alternatives when a complete rigid luminaire is preferable to field-assembled strip and channel components. The best approach depends on the detail, run length, visibility, required output and construction process.
What is architectural backlighting?

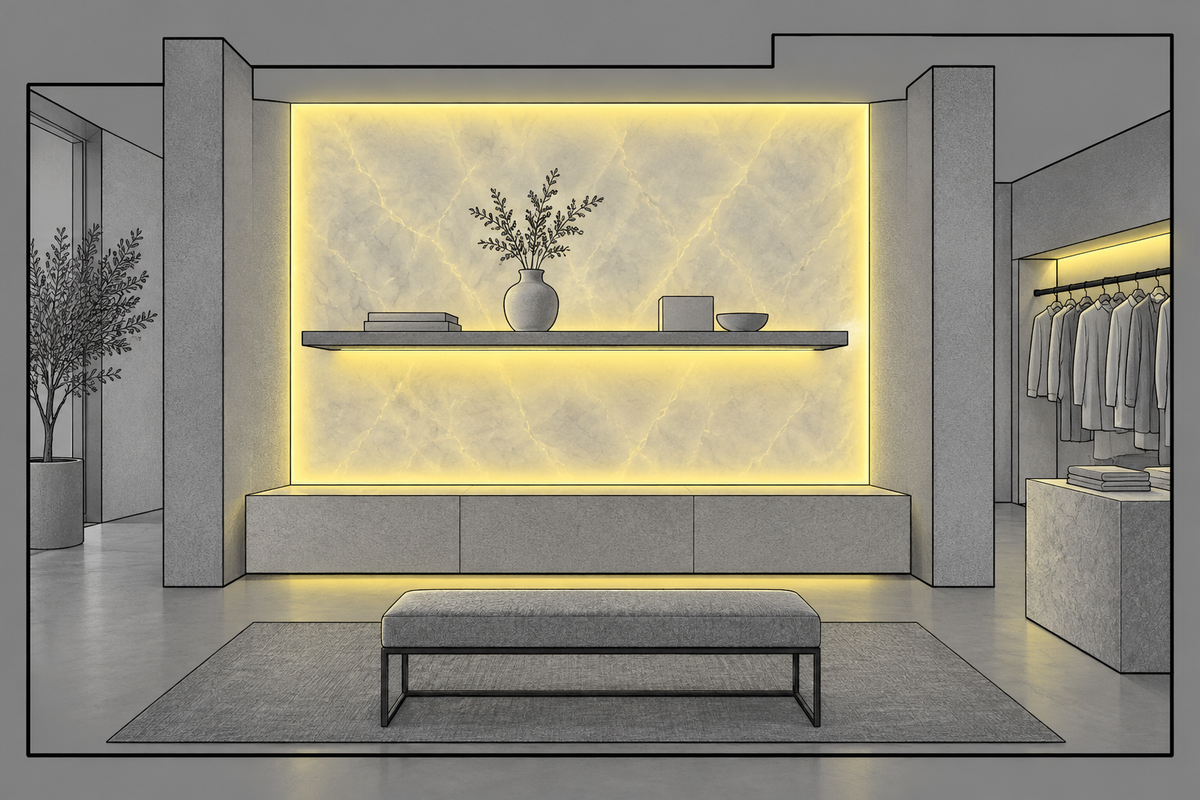

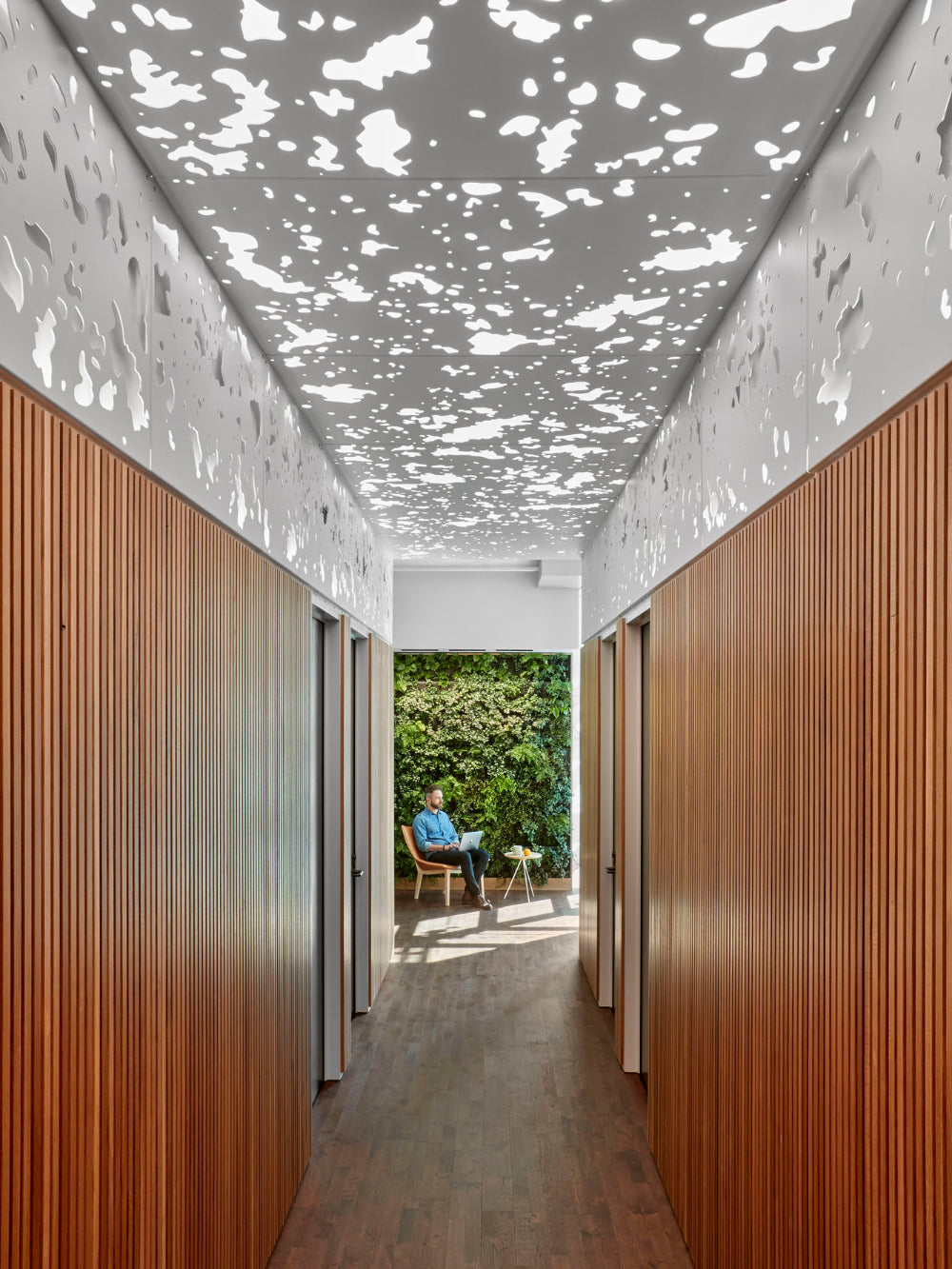

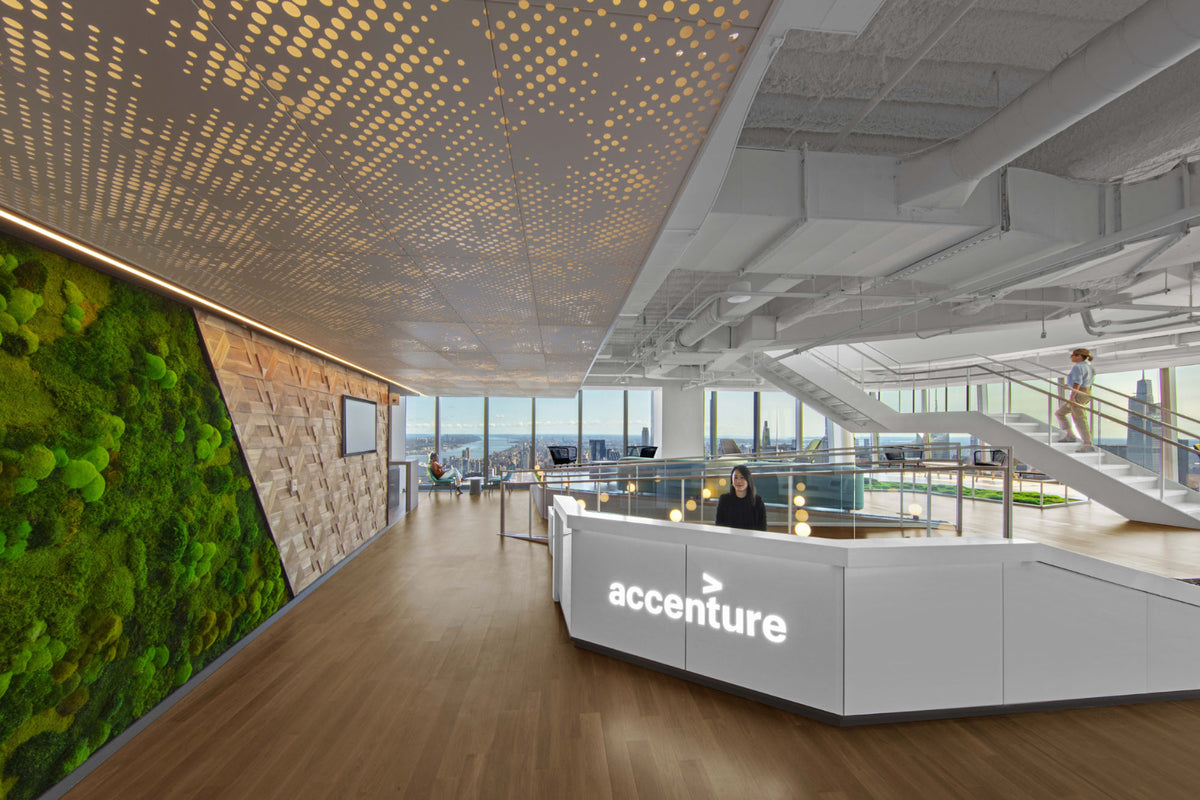

Backlighting places light behind a translucent material so the surface appears to glow. Stone, glass, resin, acrylic, fabric and graphic panels can become luminous walls, counters, reception desks, signs or art features. The available cavity depth and the material’s transmission determine how closely sources must be spaced.
Edges, seams, clips and structural supports can cast shadows through the face material. The lighting layout should therefore be developed with the panel-support system rather than fitted around it after fabrication.
Backlighting stone, glass and panels
Natural stone requires careful testing because opacity, color and veining can vary from slab to slab. Dark veins may remain dark, while thin or pale areas can become disproportionately bright. Photographing and mapping approved slabs can help coordinate the source layout with the material pattern.
Glass, acrylic and graphic panels also vary in diffusion. A shallow cavity may require closer source spacing or an added diffusion layer. Luminii’s strip and Matrix-style backlighting solutions can support luminous surfaces and light boxes, but spacing and output should be confirmed with the actual assembly.
Static white, tunable white or color-changing light
Static white is often the simplest choice for task lighting and timeless architectural details. Warm dim allows the light to become warmer as it dims, while tunable white can shift across a broader range of color temperatures. RGBW and pixel systems add saturated color and motion for hospitality, entertainment and branded environments.
Dynamic systems require compatible drivers, controls, wiring and programming. The control experience should be planned alongside the lighting hardware so the finished system remains intuitive to use.
Plan power and access early
Confirm maximum run lengths, voltage drop, feed locations, connector space and driver capacity before ordering. Drivers should remain accessible without dismantling finished millwork or stone. Long installations may require multiple feeds or power supplies even when the visible light appears continuous.
Wet, exterior and heat-sensitive applications require products specifically rated for the environment. Follow manufacturer installation guidance and coordinate electrical, millwork, stone and drywall trades around one approved detail.
Mock up the complete assembly
A useful mockup includes the intended strip, channel, lens, cavity depth, finish material, support system, power supply and dimming control. Testing only a loose piece of LED strip cannot predict whether a cabinet reflection will show dots or whether a full stone panel will appear uniform.
For prominent details, a mockup can resolve brightness, color temperature, spacing and diffusion before the project commits to fabrication.
